Bioremediation of TPH contaminated soil (applicable to TPH<5%)

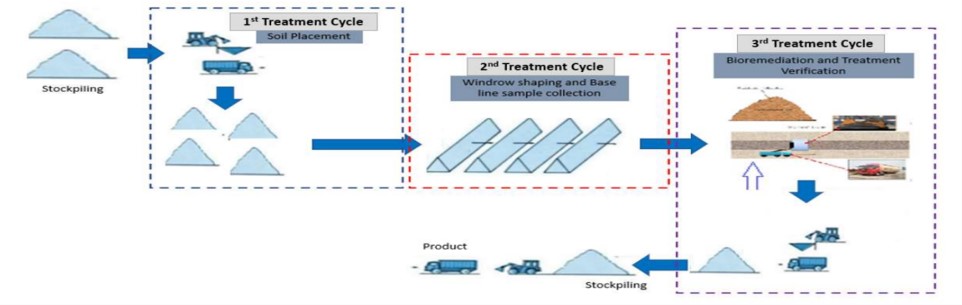

1、Indigenous bacteria biomass remediation solutions 1

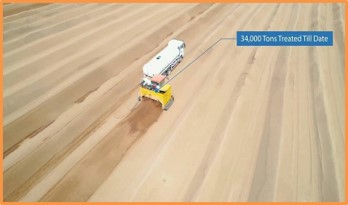

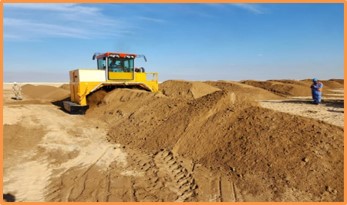

2、 Zone-2 remediation site

3、 Bio-reactor maintenance conditions

first water supplement	surfactant	microbial agent	turning over the soil	NPK addition
6%	0.1%	0.1%	2-3 days	15：5：1

4、KOC oil contaminated soil remediation (efficient petroleum hydrocarbon degradation microbial agent community & fermentation technology)

Functional degradation agent strain screening and microbial agent preparation：

1) more than 1900 strains that can degrade alkances, sycloalkanes, aromatic hydrocarbons and asphaltenes are screened;

2) different strains formulation system, according to the degradation performance as the index to form a microbial agent

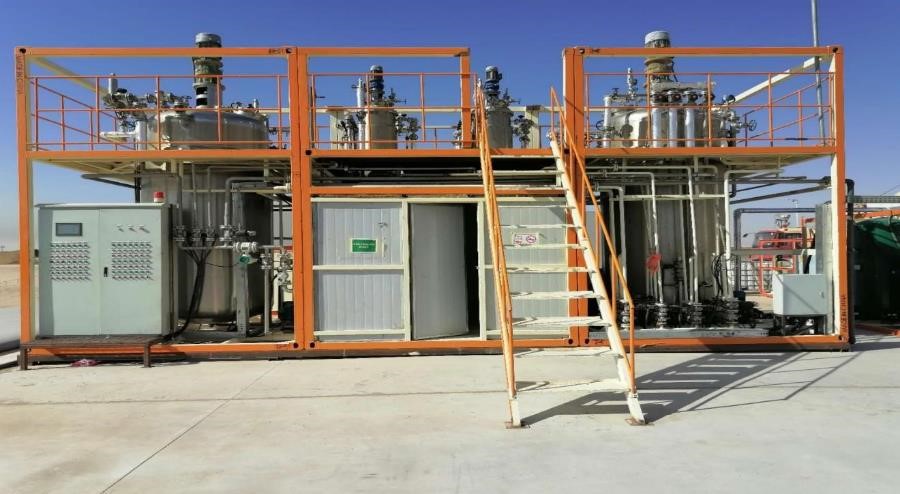

5、 Skid-mounted fermentation system

KOC/ZONE-2 On-site fermentation system

• Secondary fermentation system：

fermentation cylinder 200L—5000L;

• Structure composition：

3 main fermenters, air-compressor air pressure system, hot & cold water circulation system and steam generation system;

• Advantages：

all module installations are done in the factory, ready to use when power on at the project site, easy to transport;

• Daily output:

8000L-9000L(80% of the load);

• Application scenarios:

overseas project, remote mountain area project, plateau project, etc.
